Proiect - turbine hidraulice

UNIVERSITATEA POLITEHNICA TIMISOARA

FACULTATEA DE MECANICA

PROIECT

TURBINE HIDRAULICE

PROIECT DE INITIERE LA "TURBINE HIDRAULICE"

Sa se proiecteze rotorul unei turbine hidraulice cunoscand:

P = 45.000 kW

H = 150 m.

Memoriul de calcul va contine urmatorele etape obligatorii:

1. Analiza solutiei constructive si calculul turatiei de sincronism.
2. Calculul dimensiunilor principale ale rotorului cu metoda I. Anton si cu metoda Bovet.
3. Trasarea conturului rotorului in plan meridian.
4. Trasarea campului hidrodinamic.
5. Calculul si reprezentarea distributiei de viteza si presiune in lungul liniilor de curent.
6. Determinarea elementelor cinematice si unghiulare ale curentului de la intrare si iesire din rotor.

Partea grafica va contine:

1. Desenele si reprezentarile grafice necesare desfasurarii calculului.
2. Desenul tehnic de executie al rotorului.

Predarea proiectului se va face in saptamana 13-a, pe suport electronic si sub forma unui dosar ce va contine materialele mai sus enumerate. Sustinerea proiectului va avea loc in sptamina 14-a. Nota finala va tine cont de continutul memoriului de calcul (40%), de ritmicitatea activitatii desfasurata pe parcursul elaborarii (30%), de calitatea materialului grafic (10%), si de prestatia de la sustinere (20%).

Bibliografie

Anton, I. : "Turbine hidraulice", Ed. Facla, Timisoara, 1979.

Baya, A. : "Turbine hidraulice" - notite de curs, 2006.

Baya, A., Stuparu, A. : "Desfasurator de calcul de uz didactic pentru proiectarea rotoarelor Francis" - Doc. intern Cat. MH, 2006.

Radha, Krishna, H., C., editor: "Hydraulic Design of Hydraulic Machinery", Avebury, Alderhot, Brookfield USA, Hong Kong, Singapore, Sydney, 1997.

Raza si viteza in punctele muchiei de intr.si iesire

L.C.| R1[mm]| Vm1[m/s]| R2[mm] | Vm2[m/s]

| 1262 | 8.95 | 243 | 5.16

| 1262 | 8.97 | 439 | 7.25

| 1262 | 9.27 | 560 | 8.22

| 1262 | 9.62 | 654 | 8.94

| 1262 | 10.01 | 734 | 9.47

| 1262 | 10.67 | 803 | 9.97

| 1262 | 11.10 | 866 | 10.26

| 1262 | 12.19 | 923 | 10.60

| 1262 | 12.53 | 975 | 10.90

| 1262 | 14.36 | 1024 | 11.13

| 1262 | 17.83 | 1069 | 11.76

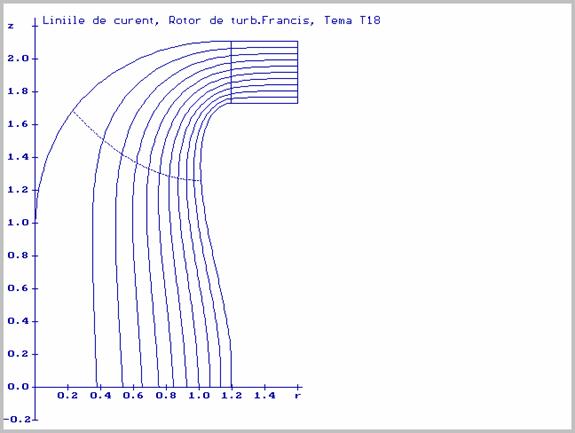

Coordonata 'r' [mm] a liniilor de curent

i j=0 1 2 3 4 5 6 7 8 9 10

0 1690.1 1690.1 1690.1 1690.1 1690.1 1690.1 1690.1 1690.1 1690.1 1690.1 1690.1

1 1673.2 1673.7 1674.2 1674.7 1675.2 1675.7 1676.2 1676.7 1677.2 1677.7 1678.2

2 1639.3 1640.9 1642.4 1643.9 1645.4 1646.9 1648.5 1650.0 1651.5 1653.0 1654.5

3 1605.5 1608.0 1610.6 1613.1 1615.7 1618.2 1620.7 1623.2 1625.7 1628.2 1630.7

4 1571.6 1575.2 1578.8 1582.4 1585.9 1589.5 1593.0 1596.5 1600.0 1603.5 1607.0

5 1537.8 1542.4 1547.1 1551.7 1556.2 1560.8 1565.3 1569.8 1574.3 1578.7 1583.2

6 1503.9 1509.6 1515.3 1521.0 1526.6 1532.1 1537.7 1543.1 1548.6 1554.0 1559.4

7 1470.1 1476.9 1483.7 1490.4 1497.0 1503.6 1510.1 1516.5 1522.9 1529.3 1535.7

8 1436.2 1444.2 1452.1 1459.8 1467.5 1475.1 1482.6 1489.9 1497.3 1504.6 1511.9

9 1402.4 1411.5 1420.5 1429.4 1438.1 1446.7 1455.1 1463.5 1471.7 1479.9 1488.1

10 1368.5 1378.9 1389.1 1399.1 1408.9 1418.5 1427.9 1437.1 1446.2 1455.3 1464.4

11 1334.7 1346.4 1357.9 1369.0 1379.9 1390.4 1400.7 1410.8 1420.8 1430.7 1440.6

12 1300.8 1314.0 1326.8 1339.1 1351.1 1362.6 1373.8 1384.7 1395.5 1406.1 1416.9

13 1266.9 1281.7 1295.9 1309.5 1322.6 1335.1 1347.2 1358.9 1370.3 1381.7 1393.1

14 1233.1 1249.7 1265.4 1280.3 1294.5 1308.0 1320.8 1333.3 1345.3 1357.3 1369.3

15 1201.6 1219.8 1236.8 1252.8 1267.9 1282.2 1295.7 1308.6 1321.0 1333.2 1345.6

16 1172.0 1191.7 1209.9 1226.8 1242.7 1257.6 1271.5 1284.7 1297.2 1309.5 1321.8

17 1142.2 1163.4 1182.9 1200.9 1217.6 1233.2 1247.6 1261.1 1273.8 1285.9 1298.0

18 1112.3 1135.2 1156.1 1175.2 1192.9 1209.2 1224.2 1238.1 1250.8 1262.8 1274.3

19 1082.4 1107.5 1130.1 1150.7 1169.6 1186.9 1202.7 1217.2 1230.3 1242.1 1253.1

20 1052.6 1079.9 1104.5 1126.7 1146.9 1165.2 1181.9 1197.0 1210.7 1222.5 1233.2

21 1022.7 1052.1 1078.3 1101.9 1123.2 1142.4 1159.8 1175.5 1189.5 1201.4 1212.2

989.4 1021.3 1049.5 1074.7 1097.4 1117.7 1136.0 1152.4 1167.1 1179.5 1190.9

952.8 988.0 1018.9 1046.2 1070.6 1092.4 1111.9 1129.4 1145.0 1158.5 1171.0

916.8 955.7 989.4 1019.1 1045.4 1068.9 1089.8 1108.5 1125.3 1140.2 1154.0

881.2 924.3 961.2 993.3 1021.7 1046.8 1069.3 1089.4 1107.6 1124.0 1139.4

26 846.2 893.7 933.9 968.7 999.2 1026.2 1050.3 1071.9 1091.6 1109.6 1126.8

27 811.5 863.9 907.6 945.1 977.8 1006.8 1032.6 1055.8 1077.1 1096.9 1115.9

28 777.3 834.9 882.3 922.6 957.6 988.5 1016.1 1041.0 1064.0 1085.6 1106.6

29 743.6 806.6 857.9 901.1 938.5 971.4 1000.7 1027.5 1052.2 1075.6 1098.5

30 710.2 779.2 834.4 880.6 920.3 955.2 986.5 1015.0 1041.5 1066.8 1091.6

31 677.4 752.6 811.9 861.0 903.1 940.1 973.2 1003.5 1031.8 1059.0 1085.7

32 645.1 726.9 790.3 842.4 886.9 925.9 960.9 993.0 1023.1 1052.2 1080.8

33 613.2 702.0 769.6 824.7 871.6 912.7 949.6 983.5 1015.4 1046.2 1076.7

34 581.9 678.0 749.8 807.9 857.2 900.3 939.1 974.8 1008.5 1041.1 1073.4

35 551.2 654.9 731.0 792.0 843.6 888.8 929.4 966.9 1002.3 1036.8 1070.8

36 521.1 632.7 713.0 777.0 830.9 878.1 920.5 959.8 997.0 1033.1 1068.8

37 491.6 611.5 696.0 762.9 819.1 868.2 912.5 953.4 992.3 1030.1 1067.4

38 462.8 591.3 680.0 749.6 808.0 859.1 905.1 947.8 988.3 1027.6 1066.6

39 434.7 572.0 664.8 737.2 797.8 850.7 898.5 942.8 984.9 1025.8 1066.2

40 407.3 553.8 650.6 725.6 788.3 843.0 892.5 938.4 982.1 1024.4 1066.3

41 380.6 536.5 637.2 714.8 779.5 836.1 887.2 934.7 979.8 1023.6 1066.8

42 354.8 520.3 624.8 704.9 771.5 829.8 882.5 931.4 978.0 1023.2 1067.7

43 329.8 505.1 613.2 695.6 764.2 824.1 878.3 928.8 976.7 1023.2 1069.0

44 305.6 490.9 602.4 687.1 757.5 819.0 874.8 926.6 975.9 1023.6 1070.5

45 282.3 477.7 592.5 679.3 751.5 814.5 871.7 924.9 975.5 1024.4 1072.5

46 259.9 465.5 583.3 672.2 746.0 810.6 869.2 923.7 975.5 1025.5 1074.7

47 238.4 454.3 575.0 665.8 741.2 807.2 867.1 922.8 975.8 1026.9 1077.1

48 217.9 444.0 567.3 660.0 736.9 804.3 865.5 922.4 976.5 1028.7 1079.9

49 198.3 434.5 560.4 654.7 733.1 801.9 864.2 922.3 977.5 1030.7 1082.8

50 179.7 426.0 554.1 650.1 729.9 799.9 863.4 922.6 978.8 1033.0 1086.0

51 162.0 418.2 548.4 646.0 727.1 798.3 863.0 923.3 980.4 1035.5 1089.4

52 145.4 411.2 543.4 642.4 724.8 797.1 862.9 924.2 982.3 1038.2 1092.9

53 129.7 404.9 538.9 639.3 722.9 796.3 863.1 925.4 984.4 1041.2 1096.7

54 115.0 399.4 535.0 636.6 721.3 795.9 863.7 926.8 986.8 1044.3 1100.6

55 101.2 394.4 531.5 634.4 720.2 795.7 864.5 928.6 989.3 1047.6 1104.6

56 88.4 390.1 528.5 632.5 719.4 795.9 865.5 930.5 992.1 1051.1 1108.8

57 76.6 386.3 526.0 631.0 718.9 796.3 866.9 932.7 995.0 1054.7 1113.1

58 65.7 383.0 523.8 629.9 718.7 797.1 868.4 935.0 998.1 1058.5 1117.6

59 55.7 380.1 522.0 629.1 718.8 798.0 870.2 937.5 1001.3 1062.4 1122.1

60 46.7 377.7 520.6 628.6 719.2 799.2 872.1 940.2 1004.7 1066.4 1126.7

61 38.5 375.6 519.5 628.4 719.8 800.6 874.3 943.1 1008.2 1070.6 1131.5

62 31.2 373.9 518.7 628.4 720.6 802.1 876.6 946.1 1011.9 1074.8 1136.2

63 24.7 372.5 518.1 628.6 721.6 803.9 879.0 949.2 1015.6 1079.1 1141.1

64 19.0 371.4 517.8 629.0 722.8 805.8 881.6 952.4 1019.4 1083.5 1146.0

65 14.1 370.5 517.7 629.7 724.1 807.9 884.3 955.7 1023.3 1087.9 1151.0

66 10.0 369.9 517.8 630.5 725.7 810.0 887.1 959.1 1027.3 1092.4 1156.0

67 6.7 369.5 518.1 631.5 727.3 812.3 890.0 962.6 1031.3 1097.0 1161.0

68 4.0 369.3 518.5 632.7 729.1 814.7 893.0 966.1 1035.4 1101.5 1166.1

69 2.1 369.2 519.1 633.9 731.0 817.2 896.0 969.7 1039.5 1106.1 1171.2

70 0.8 369.3 519.9 635.3 733.0 819.8 899.2 973.4 1043.6 1110.7 1176.2

71 0.2 369.6 520.8 636.8 735.1 822.4 902.3 977.0 1047.8 1115.4 1181.3

72 0.0 369.9 521.8 638.4 737.2 825.1 905.5 980.7 1051.9 1120.0 1186.4

73 0.0 370.4 522.8 640.0 739.4 827.8 908.7 984.4 1056.1 1124.6 1191.4

74 0.0 371.0 524.0 641.7 741.7 830.6 912.0 988.1 1060.2 1129.1 1196.4

75 0.0 371.6 525.2 643.5 744.0 833.4 915.2 991.8 1064.3 1133.7 1201.3

76 0.0 372.3 526.5 645.4 746.3 836.2 918.5 995.4 1068.4 1138.2 1206.2

77 0.0 373.1 527.9 647.3 748.7 839.0 921.7 999.1 1072.4 1142.6 1211.1

78 0.0 373.9 529.3 649.2 751.1 841.8 925.0 1002.7 1076.4 1147.0 1215.8

79 0.0 374.8 530.8 651.2 753.5 844.7 928.2 1006.3 1080.3 1151.2 1220.5

80 0.0 375.8 532.3 653.2 755.9 847.5 931.3 1009.8 1084.2 1155.4 1225.1

81 0.0 376.8 533.9 655.2 758.3 850.2 934.4 1013.2 1087.9 1159.5 1229.5

82 0.0 377.8 535.4 657.2 760.7 853.0 937.5 1016.5 1091.5 1163.5 1233.8

83 0.0 378.9 537.0 659.2 763.1 855.7 940.5 1019.8 1095.1 1167.3 1238.0

84 0.0 380.0 538.6 661.2 765.5 858.3 943.4 1022.9 1098.4 1171.0 1241.9

85 0.0 381.1 540.2 663.2 767.8 860.9 946.2 1025.9 1101.7 1174.5 1245.7

86 0.0 382.2 541.8 665.2 770.1 863.4 948.9 1028.8 1104.7 1177.7 1249.3

87 0.0 383.3 543.5 667.2 772.3 865.9 951.6 1031.6 1107.6 1180.8 1252.6

88 0.0 384.5 545.1 669.1 774.5 868.3 954.1 1034.2 1110.3 1183.6 1255.6

89 0.0 385.6 546.7 671.0 776.7 870.6 956.6 1036.7 1112.7 1186.1 1258.2

90 0.0 386.8 548.3 672.9 778.8 872.9 958.9 1039.0 1115.0 1188.3 1260.4

91 0.0 388.0 549.8 674.8 780.8 875.0 961.1 1041.2 1117.0 1190.1 1261.9

92 0.0 389.1 551.4 676.6 782.8 877.1 963.2 1043.3 1119.0 1191.5 1262.4

93 0.0 390.3 553.0 678.4 784.8 879.2 965.2 1045.3 1120.9 1192.6 1262.4

94 0.0 391.5 554.6 680.2 786.7 881.1 967.1 1047.1 1122.4 1193.5 1262.4

95 0.0 392.7 556.1 682.0 788.6 883.0 968.9 1048.8 1123.7 1194.2 1262.4

96 0.0 393.8 557.6 683.7 790.4 884.9 970.7 1050.3 1124.9 1194.8 1262.4

97 0.0 395.0 559.2 685.4 792.2 886.6 972.3 1051.8 1126.0 1195.4 1262.4

98 0.0 396.2 560.7 687.1 794.0 888.4 973.9 1053.1 1126.9 1195.9 1262.4

99 0.0 397.4 562.2 688.9 795.8 890.1 975.5 1054.4 1127.8 1196.4 1262.4

100 0.0 398.6 563.8 690.6 797.5 891.8 977.0 1055.7 1128.7 1196.8 1262.4

101 0.0 399.2 564.6 691.4 798.4 892.6 977.8 1056.2 1129.1 1197.6 1262.4
